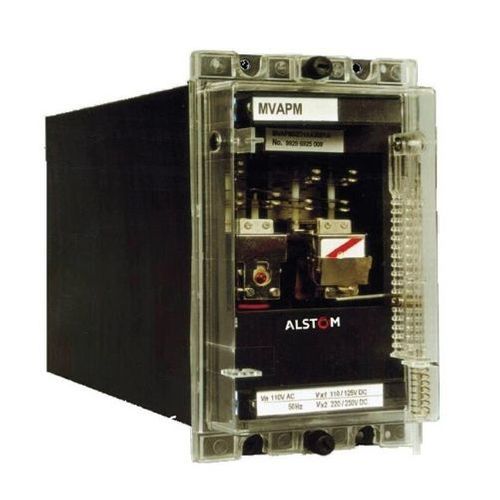

MVAPM32D1BA1003A

VOLTAGE SELECTION RELAY S/R CONTS. 60 HZ

Technical specification

Model Number             MVAPM32D1BA1003A

Relay type MVAPM 32

Case Size                4

Aux.Voltage - VX         30/54 V dc

Supply Voltage - Vn      110 V ac

Frequency                60 Hz

Phase                    3

Output Contacts          4C,2N/O S/R

Aux.Unit Front Mtd L.H   RLB 3C S/R

Flag                     No

Aux.Unit Front Mtd R.H   RLC 2N/O 2C S/R

Flag                     Yes

Aux.Unit Rear Mtd        RLA 1N/C S/R

Flag                     No

Note:- In Name Plate Rewrite 60 Hz

Instead of 50 Hz.

Name Plate               RGJ9104 217

Outline Drawing          RGJ0025 SHT-3

Wiring Diagram           01 MVAPM32 001
