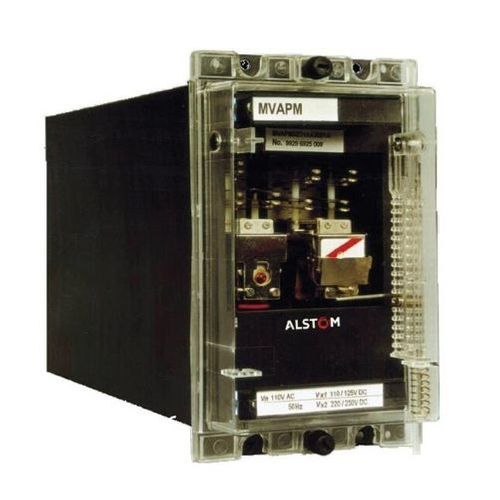

Alstom Voltage Balance Relay MVAPM32D1BA2001A
Product Details:
X
Product Description
ALSTOM VOLTAGE BALANCE RELAY MVAPM32D1BA2001A
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Voltage Balance Relay
|
MVAPM32D1BA2001A |
|
3 PHASE VOLTAGE SUPPLY MONITORING RELAY |
|
Technical Specifications |
|
Relay Model No MVAPM32D1BA2001A |
|
Relay type MVAPM 32 |
|
Case size Size 4 - Midos |
|
Nominal voltage - Vn 110V ac |
|
Frequency 60 Hz |
|
Aux.voltage - Vx1 110/125V dc |
|
Aux.voltage - Vx2 220/250V dc |
|
Phase 3 |
|
Output contacts 4 C/O 2 N/O S/R |
|
Aux. Front mtd L.H RLB - 3 C/O S/R N/F |
|
Aux. Front mtd R.H RLC - 2 N/O 2 C/O S/R W/F |
|
Aux. Rear mtd RLA - 1 N/C S/R N/F |
|
Delay on pick up RLC - 30 to 40 mSECS |
|
Name Plate RGJ9104-217 |
|
Outline Diagram RGJ0025 SHT-3 |
|
Wiring Diagram 01 MVAPM32 001 |
