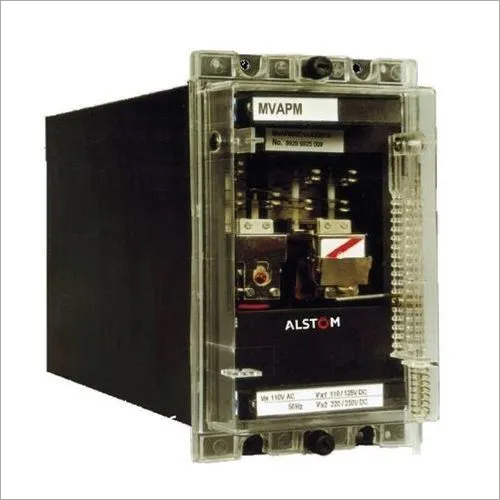

Alstom Voltage Balance Relay MVAPM32D1AA1001A
Product Details:
X
Product Description
ALSTOM VOLTAGE BALANCE RELAY MVAPM32D1AA1001A
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Voltage Balance Relay
 MVAPM32D1AA1001A
VOLTAGE SELECTION RELAY.SELF RESET CONTA
Technical specificationÂ
MVAPM32D1AA1001A
Relay type MVAPM32
CASE SIZEÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4
AUX.VOLTAGE - VXÂ Â Â Â Â Â Â Â 24/48V DC
SUPPLY VOLTAGE - Vn     110V AC
FREQUENCYÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â 50 HZ
PHASEÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 3
OUTPUT CONTACTSÂ Â Â Â Â Â Â Â Â 4C,2M S/R
AUX.UNIT FRONT MTD L.HÂ Â RLB 3C S/R NO FLAG
AUX.UNIT FRONT MTD R.HÂ Â RLC 2M 2C S/R W/FLAG
AUX.UNIT REAR MTDÂ Â Â Â Â Â Â RLA 1B S/R NO FLAG
NAME PLATEÂ Â Â Â Â Â Â Â Â Â Â Â Â Â RGJ9104 217
OUTLINE DRAWINGÂ Â Â Â Â Â Â Â Â RGJ0025 SHT-3
WIRING DIAGRAMÂ Â Â Â Â Â Â Â Â Â 01 MVAPM32 001
