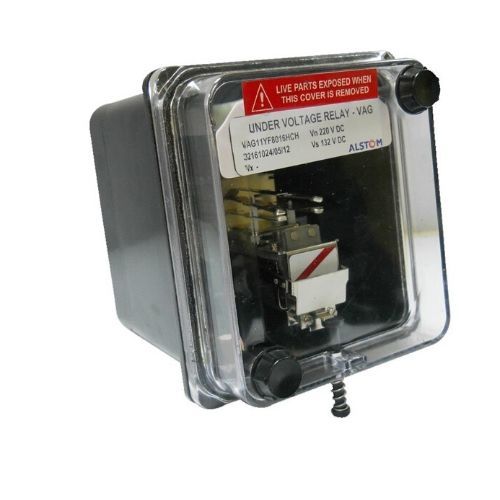

Alstom Voltage Protection Relay VAG11YF8010GCH 415V AC
Product Details:
X
Product Description
Alstom Voltage Protection Relay VAG11YF8010GCH 415V AC
Technical Specification,1.Type: Electro Mechanical Relay,2. Protection Type:Voltage Protection relay(Under/Over Voltage) GBVAG11YF8010GCH
INST UNDER VOLTAGE RELAY WITH FIXED SETT
Technical specification
Relay model no VAG11YF8010GCH
Relay type VAG 11
Case size 1/4N V 10T
Application U/V
VOLTAGE/CURRENT NOMINAL 415V AC
Frequency 50 Hz
Contacts (S/R OR H/R) 1 N/O 1 N/C S/R
Drop off voltage 249V AC
E/F or U/V Setting 60% U/V
Flag Reverse
Mounting Flush
Name plate RFB9067-012
Outline drawing MFM 015
Wiring diagram MADZ 075-3
Cut out Dimension (in mm.)
( H x W x D) 109 X 97 X 115
