Alstom Voltage Protection relay VAG11YF8022CCH
Product Details:
X
Product Description

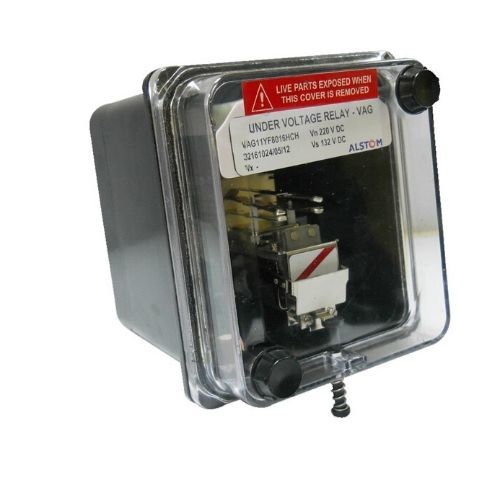

Alstom Voltage Protection relay VAG11YF8022CCH
Technical Specification 1. Type: Electro Mechanical Relay 2.Protection Type: Voltage Protection relay(Under/Over Voltage)
Technical specification
- Relay model no VAG11YF8022C(M)
- Relay typeVAG11(O/V)
- Case size 1/4N V 10T
- VOLTAGE/CURRENT NOMINAL 415V AC
- Contacts (S/R OR H/R) 1 N/O 1 N/C S/R
- O/C OR O/V SETTING 110%
- External Resistor
- Flag STANDARD FOR O/V
- Mounting Flush
- Name plate RFB9067-005
- Outline drawing MFM015
- Wiring diagram MADZ 075-7
- Cut out Dimension (in mm.)
- ( H x W x D) 109 X 97 X 115
