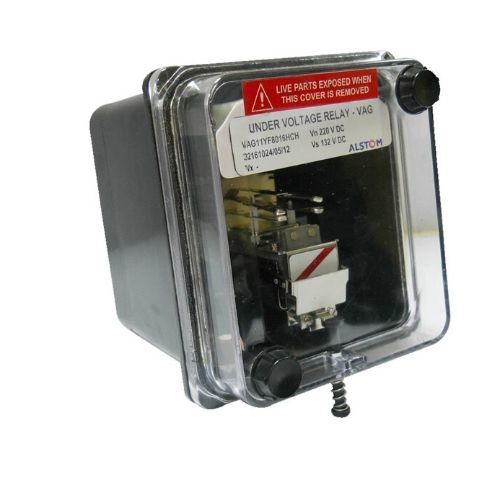

Alstom Voltage Protection relay VAG11YF8049GCH
Product Details:
X
Product Description
Alstom Voltage Protection relay VAG11YF8049GCH
Technical Specification 1. Type: Electro Mechanical Relay 2.Protection Type: Voltage Protection relay(Under/Over Voltage) GBVAG11YF8049GCH
INST UNDER VOLTAGE RELAY WITH FIXED SETT
Technical specification
Relay model no VAG11YF8049GCH
Relay type VAG 11
Case size 1/4N V 10T
Application U/V
Voltage/current nominal 110V ac
Drop off voltage 77V ac
Frequency 50 Hz
Contacts (S/R OR H/R) 1 N/O 1 N/C S/R
E/F OR U/V Setting 70% U/V
Flag Reverse
Mounting Flush
Name plate RFB9067-012
Outline drawing MFM 015
Wiring diagram MADZ 075.5

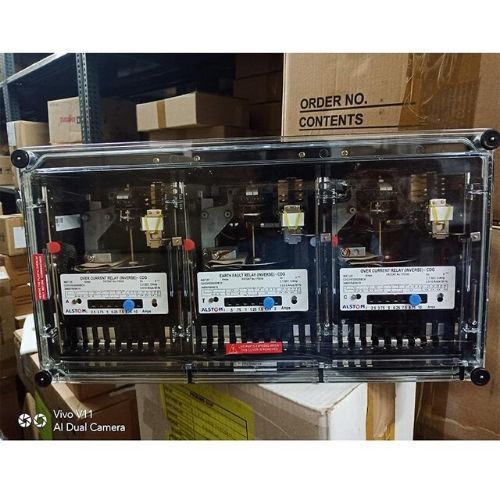

Other Products in 'GE Auxiliary Relay' category
|
|
|
 |
