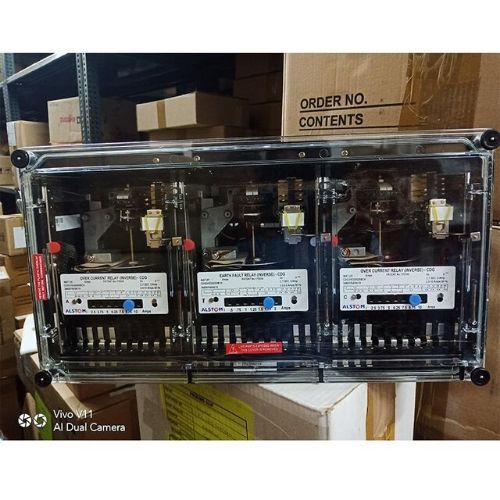

Alstom Over current & E/F Protection CDG31EG012SBCH
Product Details:
X
Product Description
Alstom Over current & E/F Protection CDG31EG012SBCHTechnical Specification
- Type: Electro Mechanical Relay
- Protection Type: Over current & Earth fault Protection(IDMT Relay)
· NON DIRECTIONAL INV TIME 3O/C OR 2O/C&1E
| Model No | CDG31EG012SB(M) |
| RELAY TYPE | CDG 31 |
| APPLICATION | 2 O/C + 1 E/F |
| BURDEN / D.M.T | 3 VA / 1.3 SEC. |
| C.T. SECONDARY | 5 AMP C. T
|
| CASE SIZE | 3D HORZ. |
| CONTACTS (S/R OR H/R) | 2 N/O S/R |
| E/F SETTING |
0.5 - 2 Amps.
|
| FLAG | YES |
| FREQUENCY | 50 HZ |
| MOUNTING | FLUSH |
| O/C SETTING |
2 N/O S/R
|
| Name Plate | RFG9125 903 |
| Outline Diagram | MFJ014 |
| Wiring Diagram | MADZ802.63-1 |
