GE / Alstom check Synchronising Relay SKE11BF8002BCH
Product Details:
X
Product Description

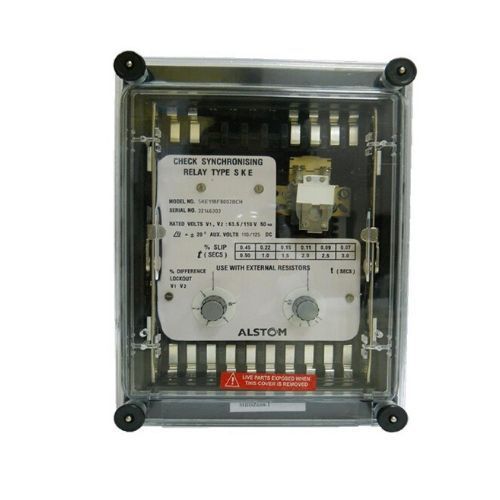

GE / ALSTOM CHECK SYNCHRONISING RELAY SKE11BF8002BCH
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Check Synchronising Relay
GBSKE11BF8002BCH
CHECK SYN RELAY FOR MANUAL SYN OF GENERA
|
Technical Specifications |
|
|
Model No : |
SKE11BF8002BCH |
|
Relay type |
SKE11 |
|
CASE SIZE |
1D V 20T D/E |
|
Aux. voltage |
110/125 V DC |
|
MTA Phase-Char Angle |
20 Degrees |
|
Voltage Lockout Adjust |
2 - 10 % |
|
CONTACTS |
2 N/O S/R |
|
Timing Range |
0.5 - 3.0 Secs |
|
Frequency |
50 Hz / 60 Hz |
|
V.T/P.T Secondary |
63.5 / 110 V AC |
|
FLAG |
No |
|
MOUNTING |
Flush |
|
External Resistor |
1 K Ohm 35 Watts |
|
Name Plate |
MZF9008-002 |
|
Outline Diagram |
MFJ012 <(>&<)> FJ0349 |
|
Wiring Diagram |
MBDZ608-1 |
