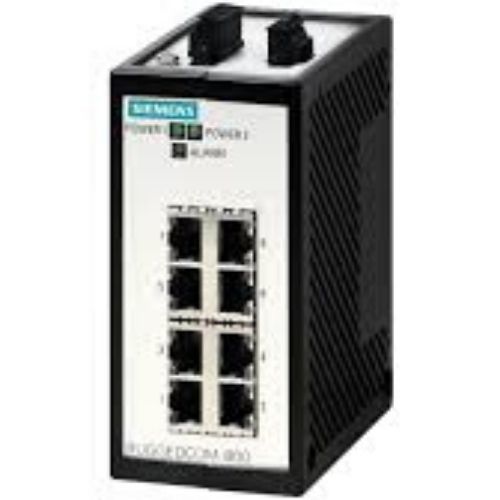

i800 Siemens Ruggedcom

Product Description

The RUGGEDCOM i800 family are compact, fully managed Ethernet switches, designed to operate reliably in harsh environments. The flexibility of the i800 family allows the user to choose from managed or unmanaged, regular or extended temperature, fiber optical or copper interfaces, and fast or Gigabit Ethernet. With up to nine Ethernet ports, the i800 is the perfect choice for a wide variety of demanding environments such as those found in process control applications (oil and gas, petro-chemical, metals and mining, as well as wind farms).The RUGGEDCOM-Selector lets you configure RUGGEDCOM products quickly, easily, and efficiently, by using targeted navigation through selection menus or by entering item numbers. Selected products can then be ordered directly by transferring the parts list into the Industry Mall.

Functions:

 ETHERNET PORTS I800

• 8x 10/100TX
• Fixed configuration
• No fiber

 I801

• 8x 10/100TX + 1x 1000LX or 1x 10/100/1000TX
• Industry standard LC fiber-optic connectors
• Multimode and single-mode optical transceivers

 I802

• 6x 10/100TX + 1x 100FX or 2x 100FX or 2x 1000LX or 2x 10/100/1000TX
• Industry standard LC fiber-optic connectors
• Multimode and single-mode optical transceivers

 I803

• 4x 10/100TX + 1x 100FX + (2x 1000LX or 2x 100FX)
• Industry standard LC fiber-optic connectors
• Multimode and single-mode optical transceivers

 CYBERSECURITY FEATURES

• Multilevel user passwords
• SSH/SSL (128-bit encryption)
• Enable/disable ports, MAC-based port security
• Port-based network access control (802.1x)
• VLAN (802.1Q) to segregate and secure network traffic
• RADIUS centralized password management
• SNMPv3 authentication and 56-bit encryption

 UNIVERSAL POWER SUPPLY OPTIONS

• Dual low-voltage DC inputs: 24 VDC (10 “36 VDC)
• Compression fit connections
• CSA/UL 60950 safety approved to +85 °C
