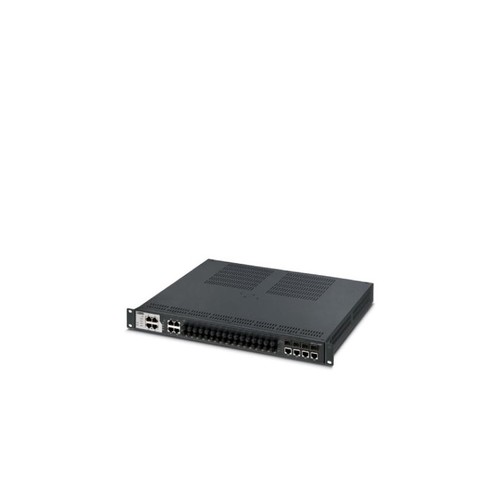

Industrial Ethernet Switch - FL SWITCH 4808E-16FX LC-4GC - 2891073
Product Details:
X
Industrial Ethernet Switch - FL SWITCH 4808E-16FX LC-4GC - 2891073 Price And Quantity
- 1 Piece Piece
Product Description
Rack-mount managed Ethernet switch meets IEC 61850-3 and IEEE 1613. Provides eight RJ45 ports at 10/100 Mbps, 16 LC MM fiber ports at 100 Mbps and four gigabit combo ports (10/100/1000 Mbps RJ45 connection; 1000 Mbps fiber optic connection requires 1000 Mbps SFP module).
Network structure according to IEC 61850
IEEE 1613
Technical data
Utilization restriction : EMC: class A product, see manufacturer's declaration in the download area
Dimensions
Ambient conditions
Interfaces
Network structure according to IEC 61850
IEEE 1613
Technical data
Utilization restriction : EMC: class A product, see manufacturer's declaration in the download area
Dimensions
- Width : 442 mm
- Height : 44 mm
- Depth : 375 mm
- Degree of protection : IP20
- Ambient temperature (operation) : -40 °C ... 70 °C
- Ambient temperature (storage/transport) : -40 °C ... 85 °C
- Permissible humidity (operation) : 5 % ... 95 % (non-condensing)
- Permissible humidity (storage/transport) : 5 % ... 95 % (non-condensing)
- Air pressure (operation) 57 kPa ... 108 kPa (up to 4850 m above mean sea level)
- Industrial Ethernet Switch - FL SWITCH 4808E-16FX LC-4GC - 2891073
Ambient conditions
- Air pressure (storage/transport) : 57 kPa ... 108 kPa (up to 4850 m above mean sea level)
Interfaces
- Interface 1 : Ethernet (RJ45)
- No. of ports : 8 (RJ45 ports)
- Connection method : RJ45
- Transmission physics : Ethernet in RJ45 twisted pair
- Transmission speed : 10/100 Mbps
- Transmission length : 100 m
- Interface 2 : Fiber optic interface
- No. of ports : 16 (Multi mode)
- Connection method : LC
- Transmission physics : multi-mode fiberglass
- Transmission speed : 100 Mbps (Full duplex)
- Transmission length : 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
- 3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600), 9.6 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
- 5.3 km (fiberglass with F-G 50/125 1.6 dB/km F800)
- Wavelength : 1300/1310 nm
- Interface 3 : Ethernet (RJ45/FO combo)
- No. of ports : 4
- Connection method : Combo
- Transmission physics : Ethernet RJ45 (10/100/1000 Mbps) or SFP (1000 Mbps)
- Transmission speed : 10/100/1000 Mbps
- Basic functions Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts.
- Status and diagnostic indicators LEDs: US1, US2 (redundant voltage supply), link and activity per port Network expansion parameters
- Cascading depth: Network, linear, and star structure: any
- Maximum conductor length (twisted pair) : 100 m
- Current consumption: 553 mA (115 V AC from FL SWITCH 4800E-P5)
- Inrush surge current: 19 A (48 V DC from FL SWITCH 4800E-P1)
