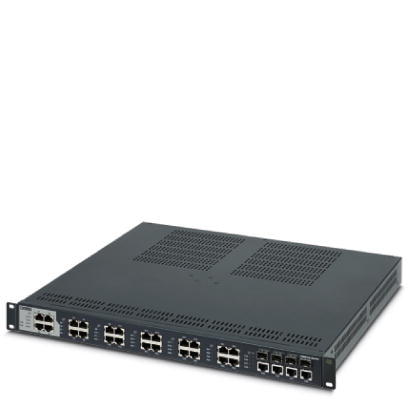

Industrial Ethernet Switch - FL SWITCH 4824E-4GC - 2891072
Product Details:
X
Industrial Ethernet Switch - FL SWITCH 4824E-4GC - 2891072 Price And Quantity
- 1 Piece Piece
Product Description
Rack-mount managed Ethernet switch meets IEC 61850-3 and IEEE 1613. Provides 24 RJ45 ports at 10/100 Mbps and four gigabit combo ports (10/100/1000 Mbps RJ45 connection; 1000 Mbps fiber optic connection requires 1000 Mbps SFP module)
Network structure according to IEC 61850
Ethernet IEC 61850-3Technical data
Utilization restriction : EMC: class A product, see manufacturer's declaration in the download area
Dimensions
Air pressure (storage/transport) : 57 kPa ... 108 kPa (up to 4850 m above mean sea level)
Interfaces
Network structure according to IEC 61850
Ethernet IEC 61850-3Technical data
Utilization restriction : EMC: class A product, see manufacturer's declaration in the download area
Dimensions
- Width : 442 mm
- Height : 44 mm
- Depth: 375 mm
- Degree of protection: IP20
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Permissible humidity (operation): 5 % ... 95 % (non-condensing)
- Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
- Air pressure (operation) : 57 kPa ... 108 kPa (up to 4850 m above mean sea level)
- Industrial Ethernet Switch - FL SWITCH 4824E-4GC - 2891072
Air pressure (storage/transport) : 57 kPa ... 108 kPa (up to 4850 m above mean sea level)
Interfaces
- Interface 1 : Ethernet (RJ45)
- No. of ports : 24 (RJ45 ports)
- Connection method : RJ45
- Note on connection method : Auto negotiation and autocrossing
- Transmission physics : Ethernet in RJ45 twisted pair
- Transmission speed : 10/100 Mbps
- Transmission length : 100 m
- Interface 3 : Ethernet (RJ45/FO combo)
- No. of ports : 4
- Connection method : Combo
- Note on connection method : Auto negotiation and autocrossing (RJ45 interface)
- Transmission physics : Ethernet RJ45 (10/100/1000 Mbps) or SFP (1000 Mbps)
- Transmission speed : 10/100/1000 Mbps
- Basic functions Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
- Status and diagnostic indicators LEDs: US1, US2 (redundant voltage supply), link and activity per port
- Network expansion parameters
- Cascading depth : Network, linear, and star structure: any
- Maximum conductor length (twisted pair) : 100 m
- Current consumption: 359 mA (115 V AC from FL SWITCH 4800E-P5)
- Inrush surge current : 18.8 A (48 V DC from FL SWITCH 4800E-P1)
- Mounting type Rack mount, includes brackets
- Type AX : Block design
- Net weight : 4470 g
- Type of test: Shock in acc. with EN 60068-2-27/IEC 60068-2-27
- Test result: 30g, 11 ms half-sine shock pulse
- Type of test: Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
- Test result: 5g, 150 Hz, Criterion 3
- Noise emission: EN 61000-6-4
- Noise immunity: IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005
