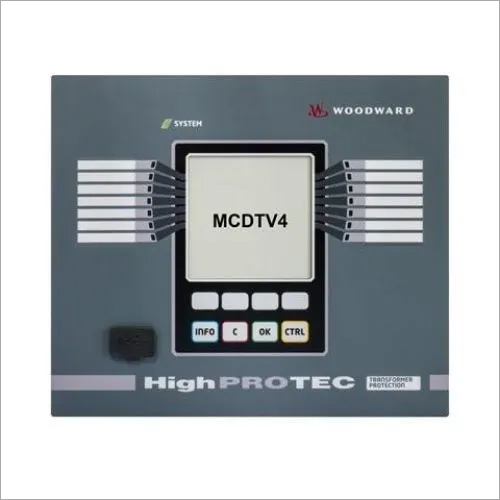

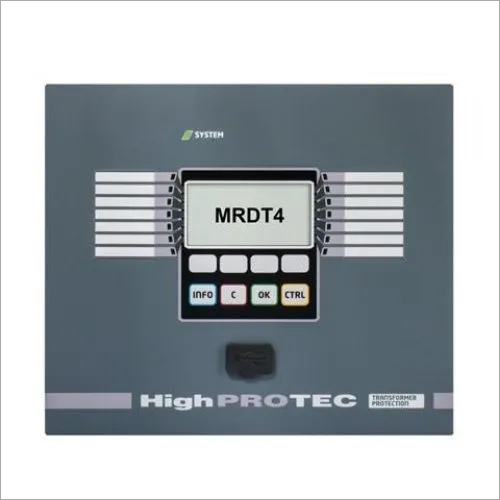

MCDTV4-Family HIGHPROTEC MCDTV4 Transformer Differential Protection

Product Description

The transformer differential protection relay MCDTV4 offers an all-in-one solution for HV, MV and LV transformers and it offers much more than just a differential protection package. Furthermore it can detect critical operation states based on voltage measurement (e.g. Overexcitation). The MCDTV4 provides in addition to that an Interconnection package.

This can be used for mains protection at the point of common coupling (e.g. for directional reactive power undervoltage protection). The integrated backup protection package enables the MCDTV4 to act as backup protection (e.g. for downstream breakers). Additional features like demand management are available without extra charge.

The protection functions of the MCDTV4 have been adapted to comply with the requirements of the VDE AR N 4110:2018. The MCDTV4 is available in 384 variants, that cover all combinations of properties that you might need or not need for your application. Each variant is uniquely specified by a typecode of form MCDTV4-2xxxxx (i.e. 5 digits/letters following the '-2'). Check the Order Form (depicted below, or in the brochure DOK-FLY-MCDTV4-2E or in the user manual MCDTV4-3.6-EN-MAN) for a complete overview. With the HighPROTEC Line Woodward offers an outstanding solution for the reliable protection ofdistribution and generator applications.

The innovative device handling and PC tool with plausibility check and internal fault simulator, combined with high flexible hardware, minimized commissioning, training costs and setting failures. The menu overview can be optimized by hiding not relevant functions.

The line is easily applicable for generator, cable and line, and transformer differential protection,directional and non-directional feeder protection as well as motor protection. The all-in-one protectionconcept for various applications guarantees a high availability of your electrical equipment and your grid.
