Primary Current Injection Test Set Current Injection Testers Udey Test Kits
Model : PCT Series

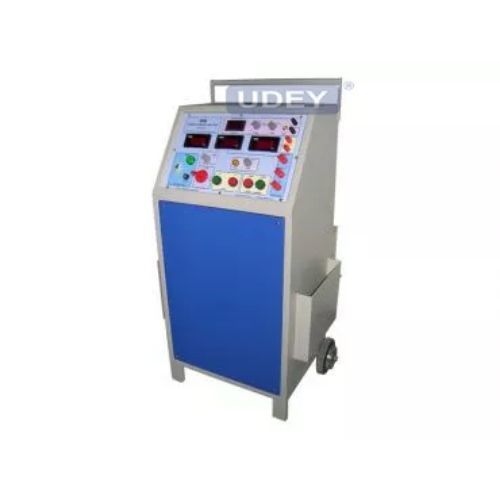

Udey PCT series comprises of two units: 1) a control unit and 2) a loading unit. Thus making the tester compact and portable. Four models are available with outputs from 250 A to 3000 A. The control unit offers a current output of 0-10 Volt at 50 Amp or 0-5 Volt at 100 Amp. Additionally, a separate voltage output of 0-250 V AC is available for testing voltage operated relays coils or checking the magnetization characteristics of current transformers.
Machine Feature
- All outputs continuously variable.
- Built in crystal time base multi range DIGITAL TIMER.
- True RMS digital metering of outputs.
- Compact rugged design Fully tropicalised.
- Auto-switch off in all modes of operation.
- All current outputs fully isolated and distortion free.
- Suitable for testing thermal devices
- All controls and metering centralized.
Machine Technical Specification
| Model | PCT-5 | PCT-10 | PCT-20 | PCT-30 |
| Supply | 240 V AC, 50/60 HZ | 240 V AC, 50/60 HZ | 240 V AC, 50/60 HZ | 240 V AC, 50/60 HZ |
| Power | 2 kVA | 4 kVA | 6 kVA | 6 kVA |
| Output Loading unit | 500 A @ 0-4V | 1000 A @ 0-4V | 2000 A @ 0-3V | 3000 A @ 0-2 V |
| Output Control unit | 100 A @ 0-5 V | 100 A @ 0-5 V | 100 A @ 0-5 V | 100 A @ 0-5 V |
- RATING :5 Minutes ON / 15 Minutes OFF. Continuous rating does not exceed 50% of the rated output.
- METERING :1) LED digital Ammeter, CT operated for current outputs.
2) LED digital Voltmeter for voltage output.
Accuracy : ± 1% ± 3 counts. - DIGITAL TIMER :4 digit, solid state crystal base timer system. Multi range from .0001 to 9999 seconds.
Accuracy : ± 0.5 % ± 2 counts - TIMER CONTROL CIRCUITS :The timer automatically starts when the output is initiated and automatically stops when the device under test operates.
- START SIGNAL :
- STOP SIGNAL :Via-either normally open or normally closed external contacts.
- AUTO-CUT-OFF :Cuts off output on operation of device under test.
- OPERATION :Circuit breaker in input, mains on indicator, contractor controlled push buttons for current output on or off, contact mode selector and reset switch.
SET/TEST switch to set up test current level. - CONSTRUCTION :Two piece unit. Sheet steel cabinets powder coated and with fold away lifting handles.
- OPTIONAL ACCESSORIES : Low inductance lead set.
2. Precision grade (0.5%) Analogue meter with Current transformer.
Standard Accessories
- Operating Manual.
- 2 meter long 3 core mains cable.
- 2 meter long inter-connecting cable.
