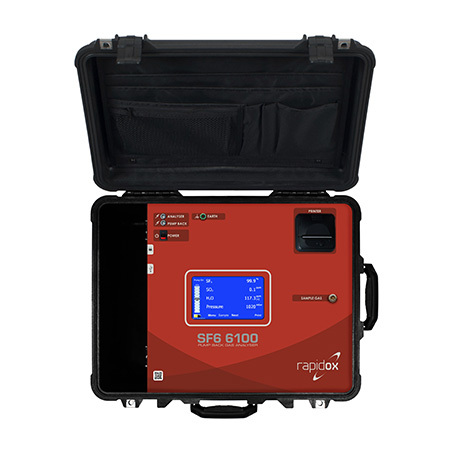

RAPIDOX SF6 6100 PUMP BACK GAS ANALYSER

The Rapidox SF6 6100 Portable is designed for controlling and monitoring the quality of SF6 in MV & HV gas insulated electrical equipment. Exceptional accuracy and stability are provided when measuring the purity of SF6 gas, through specially selected sensors. A gas output nozzle allows for the analyser to be attached to the Rapidox Gas Recovery Bag, ensuring that all sampled SF6 gas is recovered.

Internal SF6 gas pressure is recorded and logged by the analyser. All measured gases are analysed and data-logged simultaneously with only a few minutes required to achieve a stable reading. In order to accelerate the time taken in-between dew point readings, a unique Rapidri system is fitted to analysers measuring H2O. When not in use the sensor can be isolated via the Run Storage valve.

Other measurable gases include H2O (dew point), SO2, HF, O2 & CF4. Due to the instruments modular design, a number of configurations are available in order to suit a variety of application requirements.

Features

• Easy to operate and configure
• Housed within a heavy duty IP66 Peli case; inclusive of wheels and handle
• Supplied with 2m sample hose
• Total weight of 21kg (without accessories)
• Lithium battery provides up to eight hours of operation
• Large gas storage bag allows up to five measurements to be taken before pump back is required
• For SF6 nitrogen users, special nitrogen (N2) display mode is available
• Pre-programmed with all current IEC and CIGRE test configurations
• Ability to create customised tests
• Measurement data can be viewed in real time
• Data download in an MS Excel compatible format via a USB memory stick
• Features a 7 (18cm) full colour touch screen, soft menu keys and alphanumeric keypad
• Editable test locations and user names
• Integrated thermal printer provides on-site printing of test results
• Password protection feature
• Multi-language

*For analysers containing a CF4 sensor, the measurement of Air is also a requirement.

Rapidox SF6 6100 Accessories

A range of accessories is available for the Rapidox SF6 6100 gas analysers. These include special tongue and groove self sealing couplings (compatible with famous brands) as well as a range of stainless steel braided sampling hoses for use with SF6 gas-insulated equipment.

The Rapidox SF6 6100 Bench analyser is also available as a complete and portable kit that allows users to carry all of their required equipment within a heavy-duty IP66 case. Each kit contains a set of fittings with a stainless steel braided hose, a handle fitted to the analyser and a separate thermal printer.

Regular calibration significantly increases the measurement reliability and repeatability of gas analysis equipment. Cambridge Sensotec is able to offer a full calibration service at its factory via state-of-the-art automated calibration stations, designed to calibrate Rapidox gas analysers accurately and The Rapidox SF6 6100 Pump Back is the latest in fully-automatic gas analysers, designed for controlling and monitoring the quality of SF6 in medium & high voltage gas insulated electrical equipment. Exceptional accuracy and stability are provided when measuring the purity of SF6 gas, through specially selected sensors.

Once connected, the Rapidox SF6 6100 Pump Back samples gas from the electrical equipment automatically or manually, with an inlet auto gas pressure sensing function. A vacuum purge cycle and gas storage system ensures that no air can contaminate the gas sample and that no SF6 gas is able to escape during the testing period.

SF6 gas pressure in the internal sample compartment is recorded and logged by the analyser. All measured gases are analysed and data-logged simultaneously with only a few minutes required to achieve a stable reading. A powerful 10 bar compressor, with a separate lithium battery power supply, then returns the gas efficiently. Insured worldwide return shipping is available.
