Product Description

Relay Testing Kits Rental Services: OMICRON, Megger, CRM, HVIR

We offer relay testing kits on rent : OMICRON, MEGGER, CRM, HVIR, Breaker Timing Kit

Testing with highly accurate devices gives you peace of mind. But often high quality test equipment are very costly to own. But you can use our state-of-the-art test equipment on Rental basis. This will give you convenience of using high quality equipment at affordable price and that too under guidance of our testing experts.

As per the growing requirements of our clientele, we are involved in delivering Relay Test Set Rental Services to our honored clientele. These presented services are extremely valued amid our valued customers for their promptness and flexibility.

We specialize in supply of below equipment:

Omicron Make relay testing kits:

Secondary Injection Kit (CMC356)

CT analyser(Advanced)

PT Analyser (Votano)

Tan Delta (CPC 80 + CP TD12/15)

Primary Injection Kit (CPC 100)

CB Analyzer (CIBANO 500)

Other relay test kits ON RENT:

CRM, HVIR, Megger, Breaker Timing Kit

We do programming, testing and commissioning of all relays irrespective of its make with all applications. Our experienced team conducts tests of relays with very advance test kits like Omicron, Doble, Megger etc.  Adding to this, we carry out regular maintenance and calibration jobs of Numerical as well as Electromechanical Relays.

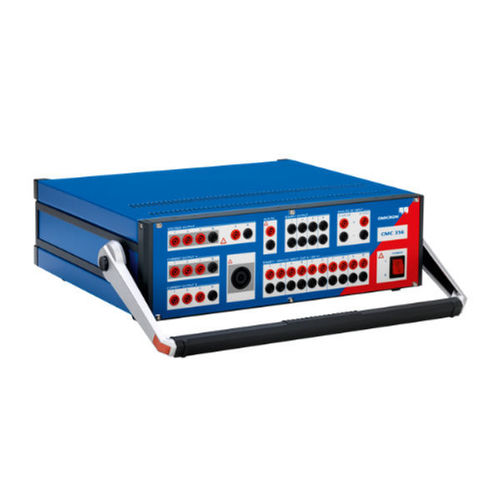

OMICRON CMC 356:

The OMICRON CMC 356: 6 Phase Current / 4 Phase Voltage Protective Relay Test Set is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high burden electromechanical relays with very high power demands. The CMC 356 is compliant with NERC/FERC protection relay testing standards.

Features:

• Very powerful current sources for testing high-burden electromechanical relays
• High current amplitudes for 5 A relay testing
• High accuracy and versatility for testing static and numerical relays of all types
• Integrated network for testing IEC 61850 IEDs
• Continuous synchronized outputs with CMIRIG-B (e.g. for PMU or MU testing)
• Primary injection capabilities for commissioning tasks
• Test Universe software with unrivaled manual and automated testing functionality
• Front panel control with the unique CM Control (option)
• 10-channel analog measurement and transient recording functionality (option)
• Reliable and robust

Protection Relay Test Set

• High-burden electromechanical relays
• Static relays
• Numerical relays
• IEC 61850 IEDs (GOOSE and Sampled Values)
• Relay panels
• End-to-End testing with GPS or IRIG-B
• Busbar protection (up to 22 signal generators)

Power System Simulator

• Transient fault simulation
• Power swing
• CT saturation simulation
• CB simulation
• Rogowski coil simulation
• Compensated network
• Transient playback (COMTRADE, PL4 (EMTP))

Universal Tool for Substation Commissioning

• Checking SCADA annunciations
• Burden measurement
• CT/VT polarity checker
• Wiring checker
• Plausibility check for CT/VT with primary injection

Portable 10-Channel Measurement Device

• Transient recording (trigger: binary, PQ, GPS)
• Multimeter for: I, V, f, S, P, Q, cos Φ ...
• Trend recording for: I, V, f, S, P, Q
• Harmonics analysis
