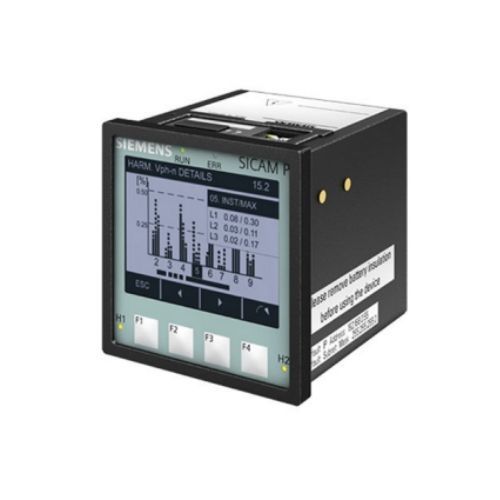

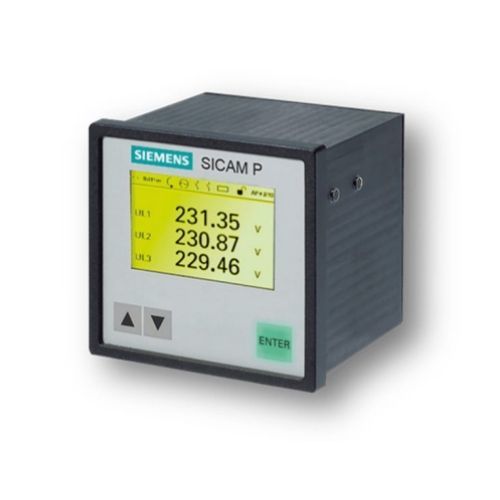

Sicam P850 Power Meter Device

Product Description

Technical specification

Input measuring circuits

• 4x alternating voltage, 3x alternating current (max. 10A)

Measured variables

• True RMS alternating voltage and alternating current
• Power frequency, active, reactive and apparent power, power factor and active power factor, phase angle
• Alternating voltage and alternating current unbalance
• Alternating voltage and alternating current harmonic up to the 40th order
• THD (total harmonic distortion) of alternating voltage and alternating current

Communication interfaces and protocols

• Ethernet: MODBUS TCP, IEC 61850 Edition 2
• Serial: Modbus RTU, IEC 60870-5-103

Operation and display

• Full graphic display including operation via 4 function keys
• 4 LEDs for state and system messages
• Integrated web server to interact with PC via HTML pages

Time synchronization

• Via Ethernet: SNTP client (Simple Network Time Protocol)
• Via fieldbus
• Internal Real Rime Clock (RTC)

Auxiliary voltage

• DC 24 - 250 V
• AC 110 - 230 V, 50/60 Hz

Housing specification

• Plastic housing for DIN rail mounting, optional panel mounting, protection class max. IP51
• Dimensions: 96 x 96 x 100 mm (W / H / D)

Special features

• Measured value acquisition according to the IEC 61000-4-30 power quality measurement standard
• Mean value and fault recorder functionality
• Memory capacity of 2 GB for storage of the recorder data

Applications

The SICAM P850 device is used in single-phase as well as in three-wire and four-wire systems (with neutral conductor). The device is applied wherever comprehensive measurement of supply quality is necessary - at power utilities as well as in industry and trade sectors.

Power Quality

Ensuring power quality in a phase of energy transition

Increasing power feed-in from renewable resources poses new challenges for municipalities and distribution system operators.

The stable supply of electric power is any grid operator's top priority. To avoid fluctuations in power quality and prevent disturbances, grid monitoring, control, and automation systems need to be adapted and optimized across all voltage levels.

Customer benefit

• Comprehensive acquisition of relevant network parameters
• Easy operation via integrated web server for parameterization, diagnosis, evaluation and reporting
• Manufacturer-independent, comparable measured values obtained by using the IEC 61000-4-30 standard measurement methods
• Interoper ability is guaranteed by using standard interfaces and standard protocols (IEC 61850, Modbus, IEC 60870-5-103)
