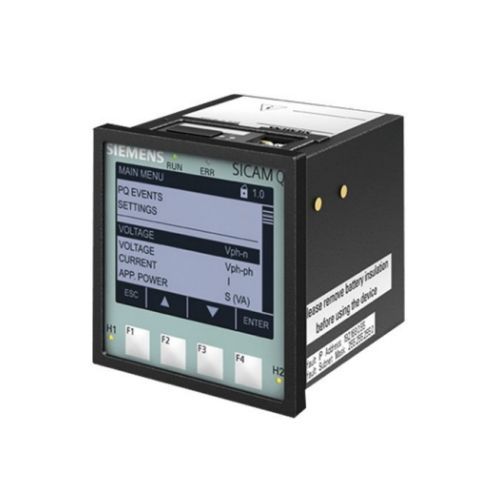

SICAM Q100 Power quality instrument

Product Description

Power quality instrument

SICAM Q100

The SICAM Q100 multi functional measuring device is used for acquisition, visualization, evaluation and transmission of electrical measured variables such as alternating current, alternating voltage, frequency, power,harmonics etc.  The acquisition, processing and accuracy of measured variables and events are performed according to the IEC 61000-4-30 Class A power quality measurement standard.  The measured variables can be out putto a PC or system control via communication interfaces or shown on a display.In addition to the monitoring function, the SICAM Q100 all-in-one device provides a combined recording and evaluating function: measured values can be recorded in parameterizable time intervals with various recorders such as power quality and fault recorders. Longtime data and events are evaluated directly inthe device and displayed as a report according to the power quality standards(e.g., EN 50160).

Applications

Power quality - supply quality

Quality is generally regarded as an important aspect of any power supply. Insufficient power supply quality has a negative impact on operational processes and operational safety of consumers connected to the network and canentail serious consequences, ultimately resulting in increased costs for theuser and supply utility.

The EN 50160 power quality standard describes the main voltage characteristics at customer's supply terminals in public low, medium and high-voltage systems. Comprehensive acquisition and documentation of parameters relevant to the supply quality is a necessary step required to identify possible weak points and initiate appropriate measures to eliminate them.

The SICAM Q100 device is used in single-phase as well as in three-wire and four-wire systems (with neutral conductor). The device is applied wherever comprehensive measurement of supply quality is necessary - at power utilities as well as in industry and trade sectors.

Technical specification

Input measuring circuits

• 4x alternating voltage, 4x alternating current

Binary input / outputs

• 2 individually programmable binary inputs / outputs
• Binary expansion (up to additional 12 inputs and 12 outputs) by using SICAM I/O Unit devices

Measured variables

• Measured value acquisition according to the IEC 61000-4-30 Class A power quality measurement standard
• Mean value, event and fault recorder functionality
• Load Profile and TOU (Time of use, 2 x Tariffs)
• Power frequency, active, reactive and apparent power, power factor and active power factor, phase angle
• Alternating voltage and alternating current harmonic up to the 63rd order

Communication interfaces and protocols

• Ethernet: MODBUS TCP, IEC 61850 Edition 2
• MODBUS Master and Gateway function for RS485 devices (as Switcher 3WL, PAC3x00, SICAM P50)

Operation and display

• Full graphic display, operation via 4 function keys
• Integrated web server to interact with PC via HTML pages

Time synchronization

• Via Ethernet: NTP client (Network Time Protocol)

Auxiliary voltage

• DC 24 - 250 V and
• AC 110 - 230 V, 50/60 Hz

Housing specification

• Compact dimensions: 96 x 96 x 100 mm (W / H / D)

Special features

• PQ reporting according to EN 50160 and CBEMA direct over HTML web server
• Evaluation of events directly in HTML via COMTRADE Viewer/SIGRA Plugin
• Flexible data export in the PQDIF, COMTRADE and CSV format
• Memory capacity of 2 GB for storage of the recorder data for years of power quality data
• MODBUS Master and Gateway function
