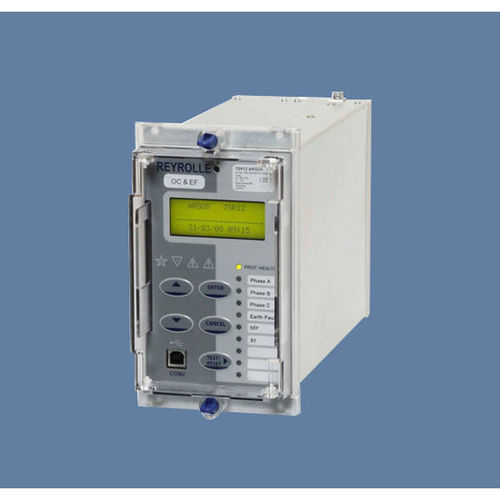

Siemens 7SR17 Reyrolle Motor Protection Numerical Relay

Product Description

The Reyrolle 7SR17 Rho is a numeric protection relay with four currentinputs and optionally three voltage inputs.The relay is applied to motors andtheir connections providing an integrated protection system.The relay istypically used as a stand-alone device but can be supplied with an externalunit to interface with remote temperature detectors embedded in the motor orinstalled on auxiliary equipment.The Reyrolle 7SR17 Rho relay includes thermalprotection optimized for motor applications and motor starting supervisionalgorithms. Several other protections are also provided and are selectable asrequired so that a solution appropriate to the installation can be achieved.TheReyrolle 7SR17 with its draw out enclosure, enhanced BI/Os, higher RTD inputs,multiple communication interfaces including IEC 61850 provides both current andvoltage based motor protection algorithms for industrial motor feederapplications.Siemens Reyrolle motor protection portfolio provides optimalprotection platforms for panel builders serving industrial and distributionapplications. The Reyrolle 7SR17 Rho is housed in an E4 case.Full userconfigurability and integrate logic allows the optimal configuration of relayinput and output functionality.

ProtectionFunctionsStall Protection (14)Under/Over Voltage (27/59)Power/Power Factor (32/55)Undercurrent (37)Current Unbalance Protection (46)Phase Reversal (46Ph Rev)Voltage Unbalance (47)Start Protection (48/66)Motor Thermal Overload (49R)Directional Overcurrent (67)Directional Earth Fault (67G/67N)Backspin Protection (81B)Under/Over Frequency (81)High Impedance REF (87REF)Temperature Inputs (via Comms Port) (RTD)

SupervisionFunctionsCircuit Breaker Fail (50BF)CT Supervision (60CTS)VT Supervision (60VTS)Trip Circuit Supervision (74T/CCS)

MonitoringFunctions·        Instrumentation

MainFeaturesOptional RTD inputsCold Load SettingsEight Settings GroupsPassword ProtectionSelf MonitoringCircuit Breaker Trip CounterFault, event and waveform records
