Siemens Ruggedcom 2100NC Ethernet Switch

Product Description

Ruggedcom Ethernet Switch

Being the leading names of the industry, we are involved in providing a wide range of Rugged Ethernet Switch. Due to high demand, our products are available in diverse configurations.

Features:

• Easy to use
• Low maintenance
• Power efficient
• Longer working life
• Top in performance
• Longer life service

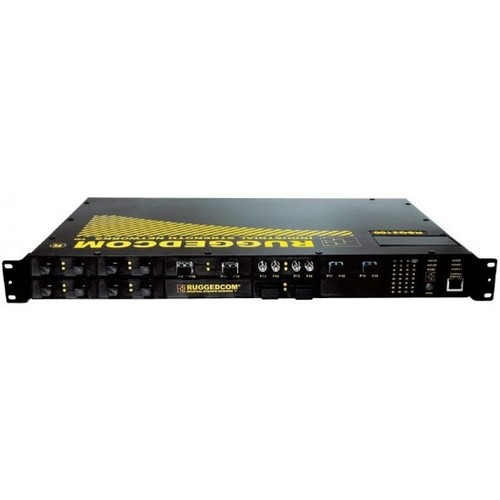

The Rugged Switch RSG2100NC is an industrially hardened, fully managed, modular Ethernet switch, specifically designed to operate reliably in electrically harsh and climatically demanding utility substation and industrial environments. The RSG2100NCs superior Rugged Rated hardware design coupled with the embedded Rugged Operating System (ROS) provides improved system reliability and advanced cyber security and networking features making it ideally suited for creating secure Ethernet networks for mission-critical, real-time control applications. The RSG2100NC s modular flexibility offers 10BaseF/100 BaseFX /1000BaseX fiber and 10/100/1000BaseTX copper port combinations. Optional front or rear mount connectors make the RSG2100NC highly versatile for any application and can support multiple fiber connectors (ST, MTRJ, LC, SC) without loss of port density. The RSG2100NC is packaged in a rugged galvanized steel enclosure with industrial grade DIN, panel, or19 rack-mount mounting options.

Ethernet Ports:

• Up to 3- Gigabit Ethernet ports - copper and/or fiber
• Up to 16-Fast Ethernet ports - copper and/or fiber
• 2 port modules for tremendous flexibility
• Non-blocking, store and forward switching
• Supports many types of fiber (Multi mode, single mode, bi-directional single strand)
• Long haul optics allow Gigabit distances up to 70 km
• Multiple connector types (ST, MTRJ, LC, SC, RJ45, micro-D)

Cyber Security Features:

• Multi-level user passwords
• SSL (56-bit encryption)
• Enable/disable ports, MAC based port security
• Port based net work access control (802.1X)
• VLAN (802.1Q) to segregate and secure net work traffic
• RADIUS centralized password management

• SNMPv3 authentication and 56-bit encryption

Universal Power Supply Options:

• Fully integrated, dual-redundant (optional) power supplies
• Universal high voltage range: 88-300VDC or 85-264VAC
• Low voltage ranges: 24VDC(10-36VDC),48VDC (36-72VDC)
• Screw or pluggable terminal blocks
• CSA/UL 60950 safety approved to +85°C

Rugged Operating System (ROS) Features:

• Simple plug and play operation - automatic learning, negotiation, and crossover detection
• MSTP 802.1Q-2005 (formerly 802.1s)
• RSTP(802.1W) and Enhanced Rapid Spanning Tree(eRSTP) net work fault recover y (<5ms)
• Quality of Service (802.1P) for real-time traffic
• VLAN (802.1Q) with double tagging and GVRP support
• Link aggregation (802.3ad)
• IGMP Snooping for multicast filtering
• Port Rate Limiting and Broadcast Storm Limiting
