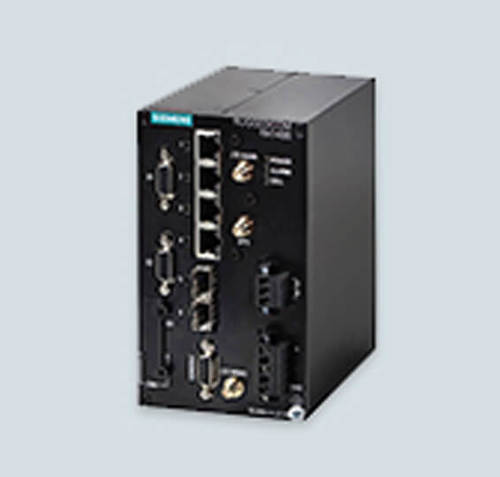

Siemens Ruggedcom RX1400 wireless LAN ethernet switches
Product Details:
X
Product Description
Combining Ethernet switching, wireless LAN, routing and firewall functionality in one, the RUGGEDCOM RX1400 holds its own in the most demanding industrial environments. As a cellular router, it eliminates the need for extensive communication infrastructures. In addition to providing IP40 protection, it requires no internal fans for cooling to operate reliably in an extended temperature range of -40° C to +85° C.
The RUGGEDCOM RX1400, thanks to its compact form factor and multi-function capability, offers a cost saving solution for large scale deployments by avoiding the need for multi-device solutions to achieve the needed interface, switching, routing and application hosting capabilities.
The RUGGEDCOM VPE1400 provides a virtualized environment to run a guest Linux operating system and third party applications on the RX1400, enabling intelligence at the network edge.
Virtualization allows a full Linux image (with dedicated storage media and I/O ports) to run in parallel with the RUGGEDCOM ROX II, using a Linux KVM (Kernel Virtual Machine) based solution. The KVM ensures that the guest OS and third party applications can run without impacting RUGGEDCOM RX1400 core services running on the system. The RUGGEDCOM RX1400 is an all-in-one solution for plug-and-play connectivity to MindSphere. This compact, single device solution provides the combined capabilities of data acquisition, conversion and communication with MindSphere.
Communication interfaces
- 2 SMA ports for Wireless WAN Interface (4G/3G/2G) with up to 100 Mbit/s bandwidth
- 4 x 10/100 Mbits/s ports (10/100TX)
- 2 x 1000 Mbit/s SFP ports (1000LX) for long reach fiber optic connections (up to 100 km)
- 2 Serial Ports RS232/RS422/RS485 (DB9)
- 2 R-SMA ports for Wireless LAN Interface supporting IEEE 802.11a/b/g/n with up to 100 Mbit/s bandwidth
Other interfaces
- SMA port for GPS
- RS232 console port for local management / diagnostics on the device
- Isolated built-in power input (12-24 VDC)
Rugged Rated for harsh environments
- -40 C to +85C operating temperature (no fans)
- CSA/UL 60950 safety approved to +85C
Management tools
- Web-based, SSH, CLI management interfaces
- SNMP v1/v2/v3
- Remote Syslog
- Rich set of diagnostics with logging and alarms
- Loopback diagnostic tests
- Raw and interpreted real time line traces
Software features
- Running ROX II Operating System
- Virtualization allows a full Linux image (with dedicated storage media and I/O ports) to run in parallel with the ROX II operating system.
- Enhanced security / reliability through data and control path separation
- Single file configuration automation ensures easy installation and configuration control
- Automatic rollback in the event of configuration errors
- NETCONF configuration interface supports powerful remote configuration and status features
- Port rate and Broadcast Storm Limiting
- Port configuration, status, statistics, mirroring
- Routing Protocols OSPF, BGP, RIPv1 and v2
- Virtual Router Redundancy Protocol (VRRP)
- NTP time synchronization (client and server)
- Redundancy protocols MSTP 802.1Q-2005, RSTP (802.1w) and Enhanced Rapid Spanning Tree (eRSTP) for network
- fault recovery
- Quality of service (802.1p) for real-time traffic
