SIEMENS SIPROTEC 7VK87 BREAKER MANAGEMENT DEVICE

Product Description

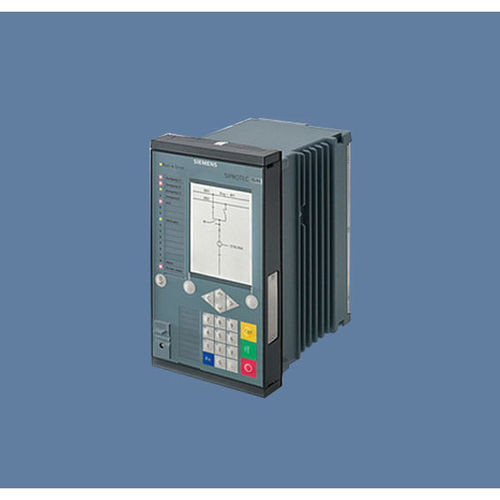

SIEMENS SIPROTEC 7VK87 breaker management device

The breaker management device SIPROTEC 7VK87 is part of thenew SIPROTEC 5 series of modular, flexible and intelligent digital fielddevices. With its modularity and flexibility and its high-performance DIGSI 5engineering tool, the SIPROTEC 7VK87 fits perfectly for protection, control,monitoring, and measuring applications in electrical energy systems. Mainfunction: Automatic reclosing, synchro check, circuit-breaker failureprotectionTripping-1- and 3-pole or 3-poleInputs and outputs:-12 predefinedstandard variants with 4/4 or 8/8 current/voltage transformers,-5 to 31 binaryinputs,-4 voltage transformers-8 to 46 binary outputs Hardware flexibility: Flexiblyadjustable I/O quantity structure within the scope of the SIPROTEC 5 modularsystem Width of housing:1/3 x 19'' to 2/1 x 19''

Alll functions can be configured freely with DIGSI 5. Forthe application of some of the functions, you require the appropriate number offree function points within the device. The function point calculator in theonline configurator provides support in determining the required number offunction points for your device.

• Automatic reclosing function and synchrocheck for line protection applications with 1-pole and 3-pole tripping
• Circuit-breaker failure protection for 1-pole and 3-pole tripping
• Control, synchrocheck and switchgear interlocking protection
• Voltage controller for transformers
• Arc protection
• Voltage protection
• Graphical logic editor to create powerful automation functions in the device
• Single line representation in small or large display
• Integrated electrical Ethernet RJ45 for DIGSI 5 and IEC 61850 (reporting and GOOSE)
• Up to 4 optional pluggable communication modules, usable for different and redundant protocols (IEC 61850, IEC 60870-5-103, IEC 60870-5-104, Modbus TCP, DNP3 serial and TCP, PROFINET IO)
• Serial protection data communication via optical fibers, two-wire connections and communication networks (SHD networks, MPLS networks, for example us-ing IEEE C37.94, and others), including automatic switchover between ring and chain topology
• Redundancy protocols PRP and HSR
• Cyber security to NERC CIP and BDWE Whitepaper requirements
• Phasor Measurement Unit (PMU) for synchrophasor measured values and IEEE C37.118 protocol
• Time synchronization IEEE 1588
• Powerful fault recording (buffer for a max. record time of 80 sec. at 8 kHz or 320 sec. at 2 kHz)
• Auxiliary functions for easy tests and commissioning
• Flexibly adjustable I/O quantity structure within the scope of the SIPROTEC 5 modular system
