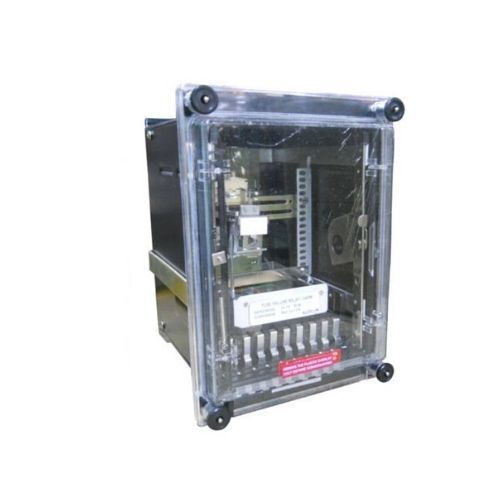

Alstom Selfpowered Battery E/F relay CAEM21AF106A
Product Details:
X
Product Description
AlstomSelfpowered Battery E/F relay CAEM21AF106A
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Selfpowered Battery E/F relay
|
Technical specification CAEM21AF106A |
|
Relay type CAEM21 |
|
CASE SIZE 1D S/E |
|
APPLICATION E/F |
|
BATTERY VOLTAGE 800/1000V DC |
|
CURRENT SETTING 1-7 mA |
|
L.H.UNIT-VAA 2M 1B S/R W/F |
|
R.H.UNIT-SPL.VAA 1M S/R N/F |
|
EXT.RESISTER R9 & R10 2.7K OHMS |
|
EXT.RESISTER R11 12K OHMS |
|
EXT.RESISTER R12 & R13 2.7K OHMS |
|
EXT.RESISTER R14 & R15 2.7K OHMS |
|
NAME PLATE RZF9134 609 |
|
OUTLINE DRAWING MFJ 012 |
|
WIRING DIAGRAM MADZ601.11 |
