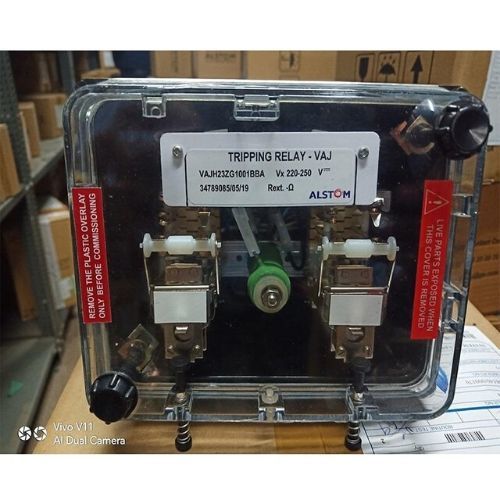

Alstom Tripping relays VAJH23ZG0754BBA
Product Details:
X
Product Description
ALSTOM TRIPPING RELAYS VAJH23ZG0754BBA
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Tripping relays
GBVAJH23ZG0754BBA
2 ELEMENT VOL. OP HIGH SPEED TRIP RELAY
Technical Specifications:
| Relay Model No | VAJH23ZG0754BBA |
| Relay Type | VAJH23 |
| Case Size | 1/2NH 20T |
| Aux Current OR Voltage | 110-125V DC |
| Contacts L.H Unit | 2N/02 N/C |
| Contacts R.H Unit | 2N/02 N/C |
| Total Output Contacts | 4N/O4/C H/R |
| Burden | High |
| Flag | YES |
| Note | Resistor ‘R1’ 1 Off And ‘R2’ |
| 1 off to be connected in parrallel | |
| Mounting | Flush |
| Name Plate | RFB9070004 |
| Outline Diagram | RFG0031 SHT.3A |
| Wiring Diagram | 01VAJH23ZG002 |
| Cut Out Dimension(In mm) –(H X W X D) | 116x145x130 |
