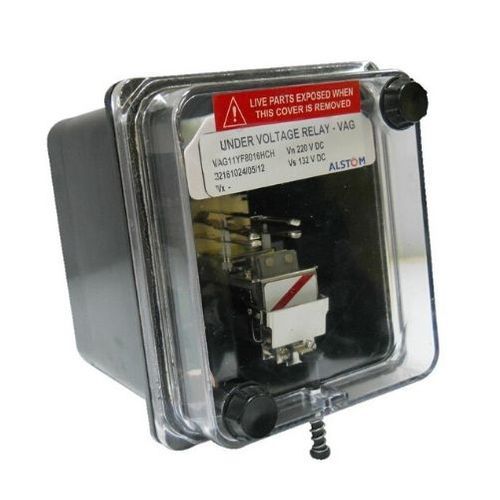

Alstom Voltage Protection Relay VAG11YF8008CCH
Product Details:
X
Product Description
ALSTOM VOLTAGE PROTECTION RELAY VAG11YF8008CCH
Technical Specification
- TypeElectro Mechanical Relay
- Protection TypeVoltage Protection relay(Under/Over Voltage)
- GBVAG11YF8008CCH INST OVER VOLTAGE RELAY WITH FIXED SETTING
| Technical specification | |
| Relay model no | VAG11YF8008CCH |
| Relay type | VAG 11 |
| Case size | 1/4N V 10T |
| Application | O/V (110%) |
| VOLTAGE/CURRENT NOMINAL | 110V AC |
| Pick up voltage | 121V ac |
| Frequency | 50 Hz |
| Contacts (S/R OR H/R) | 1 N/O 1 N/C S/R |
| Flag | Yes |
| Mounting | Flush |
| Name plate | RFB9067-005 |
| Outline drawing | MFM 015 |
| Wiring diagram | MADZ 075.3 |
| Cut out Dimension (in mm.) | 109 X 97 X 115 |
