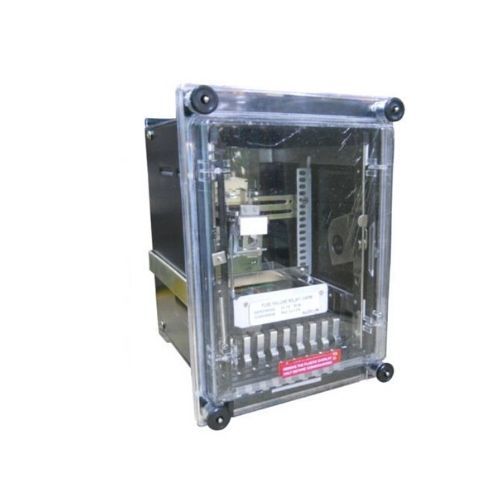

Alstom Voltage Protection Relay VDG13AF9101ACH
Product Details:
X
Product Description
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Voltage Protection relay(Under/Over Voltage GBVDG13AF9101ACH
- 1 POLE U/V RELAY WITH INV. TIME CHARACTE
- Model No : VDG13AF9101ACH
- Relay type VDG 13
- CASE SIZE 1D V 10T
- Aux.current or voltage 24 - 250V dc
- E/F OR U/V Setting 50 - 90% U/V
- External transformer Not required
- CONTACTS (S/R OR H/R) 2 N/O S/R
- V.T/P.T Secondary 110V ac
- Frequency 50 Hz
- Tap std
- FLAG Yes
- MOUNTING Flush
- Name Plate RFG9064627
- Outline Diagram MFJ 012
- Wiring Diagram MADZ816-28-1
- Cut out Dimension (in mm.)
- (H x W x D) 222 X 150 X 203
