CT / PT Tester, Analyzer Udey Test Kits
Product Details:
X
Product Description

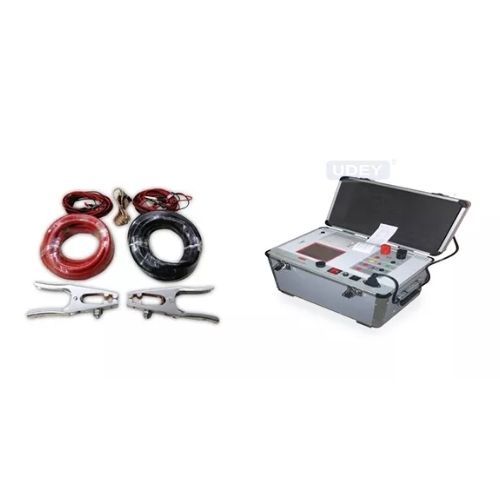

CT / PT Tester, Analyzer Udey Test Kits
CTPT-81 is a new generation, micro-processor operated digital instrument. Display is on big screen LCD with human computer dialogue operation. It only needs to set highest voltage and maximum current, then the instrument can follow the instructions and automatically step up, up word increase, automatically record the test data, automatically draw voltampere feature curve, and can save and print. The tester does away with manual voltage adjustment, manual recording and curve drawing.
Machine Feature
CURRENT TRANSFORMER : CT
- Magnetization Curve
- Transformation Ratio Test
- Polarity
- 5& & 10 % errore curve
- Current Injecting
- Demagnetization
- Power Frequency Withstand Test
- Automatic Calculation of Excitation
- Knee Point Value
VOLTAGE TRANSFORMER : PT
- Excitation Characteristics Test
- Transformation Ratio Test
- Polarity
- Power Frequency Withstand Test
- Demagnetization
- Automatic Calculation of Excitation Knee Point Value
Machine Technical Specification
| POWER SUPPLY | 230V± 10% AC, 50-60 Hz |
| O / P VOLTAGE | Excitation Characteristics : 0 ~ 1000 Volts |
| O / P CURRENT | Excitation : 0 ~ 15 Amp |
| CURRENT INJECTION | 0 ~ 600 Amp |
| ACCURACY DISPLAY | ± 0.5% |
| MEMORY | 3000* results |
| PRINTER | Built in Printer |
| PC INTERFACE | USB Flash disc |
| CONSTRUCTION | Aluminum Cabinet |
| USE ENVIRONMENT | Temperature: Max 45°C |
| DIMENSION | L x W x 0 x 20 x 26cm Approx. |
| WEIGHT | 18 kg Approx. |
