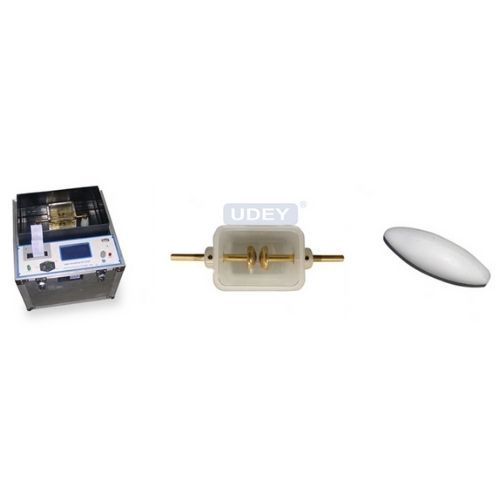

OTSA series Insulating Oil Tester Udey Test Kits

Input Supply

220±10% Volts AC, 50 Hz, single phase.

Test Voltage

0-60kV/Model: OTSA-60; 0-75kV/Model: OTSA-75; 0-80kV/Model: OTSA-80)
0-90kV/Model: OTSA-90; 0-100kV/Model: OTSA-100

Capacity

60kV:1.2 kVA;75kV:1.5 kVA;80kV:1.6 kVA;90kV:1.8 kVA;100kV:2 kVA;

Resolution

0.1 kV.

Accuracy

2%.

Time of Breakdown

<10 millisecond.

Rate of rise of Voltage

0.5 to 5 kV adjustable per second ± 20%.

kV Indication

Digital display on LCD screen.

Test number indication

Digital display on LCD screen and on printout

User defined settings

a) Date and time .
B) Number of Tests Settable from 1 to 9 times.
c) Settling time Settable from 0-999 seconds.
d) Stirring time Settable from 0-999 seconds.
e) Waiting time Settable from 0-999 seconds.

Test cell with Electrodes

Type TC-1: 13 mm round electrodes.
Type TC-2: 36 mm mushroom electrodes.
Type TC-3: 25 mm flat disc electrodes.

Gap Gauge

2.5 mm

Printer

Built in printer for printing results on plain paper.

Construction

In light weight aluminum cabinet with removable cover, lock and lifting handles.

Temperature Range

5 to 40º C.

Relative Humidity

< 85% RH

Working Altitude

< 1500 meters.

Dimensions/weight (App)

43 x 40 x 40 cm. Weight: Net 27 kgs for OTSA-60, other models Net 36 kgs.
