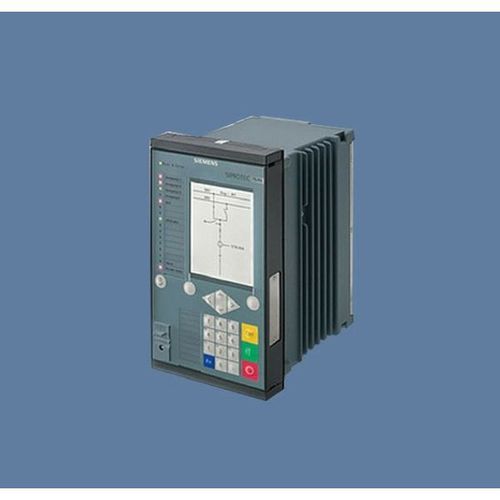

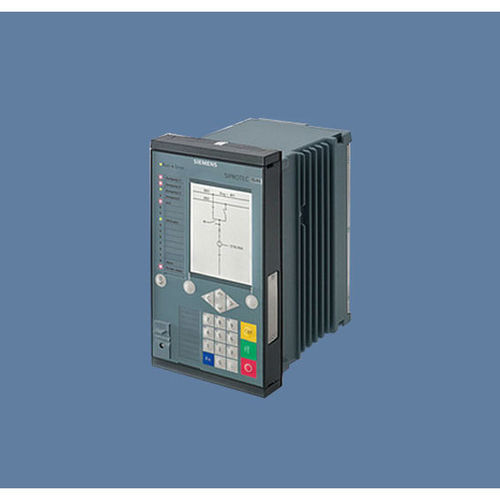

Siemens SIPROTEC 6MD85 Bay Controller Numerical Relay

Product Description

SIPROTEC 6MD85

The SIPROTEC 5 Bay Controller is a control and automationdevice with optional protection function. It is designed for use in all voltagelevels from distribution to transmission. As a full member of the SIPROTEC 5family, it allows the use of a large number of protection functions from theSIPROTEC library with identical parameters like in the protection devices. Themodular hardware enables the user to integrate as many IO's as needed. Mainfunction: Bay Controller for medium and high voltage switchgear. Integratedoperator panel and key switches (optional). Powerful  automation functionality, easily configurablewith DIGSI. A large number of protection functions available. Inputs andoutputs:-5 predefined standard variants with 4/4-current/voltagetransformers,-11 to 75 binary inputs,-9 to 41 binary outputs Hardwareflexibility: Flexible adjustable HW IO-quantity within the scope of theSIPROTEC5 modular system. The use of a second row allows more than 400 in- andoutputs .Width of housing:1/3 x 19 Inch - 2/1 x 19 Inch

All functions can be configured freely with DIGSI 5. For theapplication of some of the functions, you require the appropriate number offree function points within the device. The function point calculator in theonline configurator provides support in determining the required number offunction points for your device.

FUNCTIONS

• Integrated bay controller with versatile protection function from medium to extra-high voltage
• Control of switching devices
• Synchrocheck and switchgear interlocking protection
• Integrated electrical Ethernet RJ45 for DIGSI 5 and IEC 61850 (reporting and GOOSE)
• Up to 4 pluggable communication modules, usable for different and redundant protocols (IEC 61850,IEC 60870-5-103, IEC 60870-5-104, DNP3 serial and TCP, Modbus TCP, PROFINET IO)
• Redundancy protocols PRP and HSR
• Arc protection
• Cyber security in accordance with NERC CIP and BDWE Whitepaper requirements
• Graphical logic editor to create powerful automation functions in the device
• Optional overcurrent protection for all voltage levels with 3- pole tripping
• Also used in switchgear with breaker-and-a-half configuration
• Overcurrent protection also configurable as emergency function
• Selective protection of overhead lines and cables with single-ended and multi-ended feeders using protection communication
• Secure serial protection data communication, also over great distances and all available physical media (fiber-optic cable, 2-wire connections and communication Networks)
• Capturing operational measured variables and protection function measured values to evaluate the plant state, to support commissioning, and to analyze faults
• Phasor Measurment Unit (PMU) for synchrophasor measured values and IEEE C37.118 protocol integrated
• Powerful fault recording (buffer for a max. record time of 80 s at 8 kHz or 320 s at 2 kHz)
• Auxiliary functions for simple tests and commissioning
• Flexibly adjustable I/O quantity structure within the scope of the SIPROTEC 5 modular system
